Diagram Of Wheel Offset. Wheel Offset and Wheel Backspacing Explained CAR FROM JAPAN The visualizer will show the new setup outlined in orange, the side by side. The hub mounting surface is located in the back half of the wheel closer to the back lip flange
Wheel Backspacing VS Wheel Offset Charts and Table Included In The Garage with from www.carparts.com

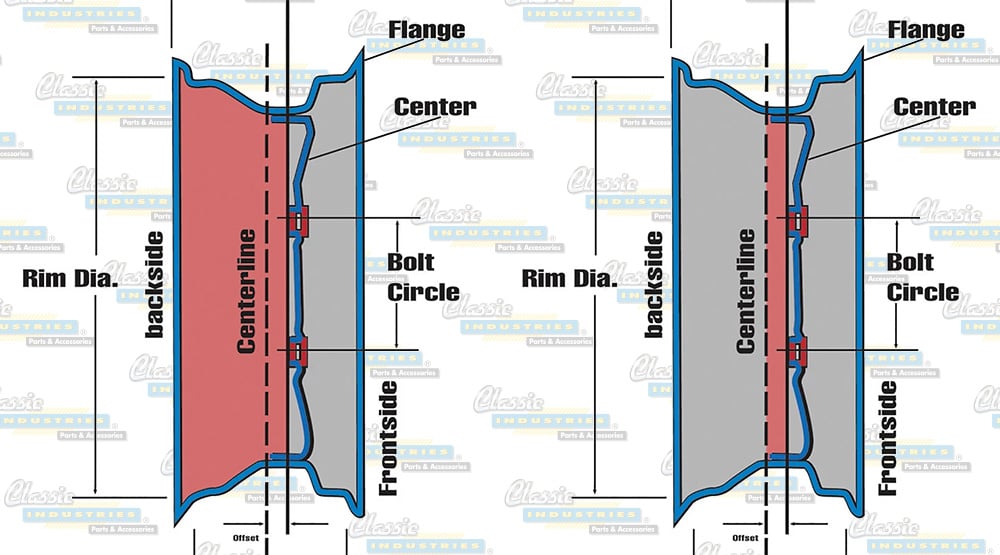

If the mounting pad is closer to the face of the wheel from the center line the wheel is a positive offset, if the mounting pad of the wheel is at the dead center of the center line the wheel is a zero offset and if the mounting pad of the wheel is closer to the backside of the wheel from the center line. Wheel offset is technically defined as the distance between a wheel's mounting surface (the face where the wheel is bolted to the rotor's mounting surface) and its centerline (the lateral middle of the wheel)
Wheel Backspacing VS Wheel Offset Charts and Table Included In The Garage with
WADSWORTH, OH 44281 1.800.924.5172 WWW.ECSTUNING.COM 5 ® Table of Contents Wheel offset is a measurement that indicates the position of the wheel mounting surface in relation to the wheel centerline Positive offset wheels are generally found on front-wheel drive cars and newer rear-wheel drive cars Offset - Distance from the wheel center-line (CL) to the wheel mating surface - greater positive offset moves the tires inward (narrower track) Backspace - Distance from the inside lip of the wheel to the wheel mating surface The tricky part is that when a wheel is widened the offset and/or backspace change (actually it is impossible for both of them to.
Wheel Offset And Backspacing Chart Minga. Offset - Distance from the wheel center-line (CL) to the wheel mating surface - greater positive offset moves the tires inward (narrower track) Backspace - Distance from the inside lip of the wheel to the wheel mating surface The tricky part is that when a wheel is widened the offset and/or backspace change (actually it is impossible for both of them to. Wheel offset is the distance between the centerline of the wheel and the hub mounting surface
Custom Wheels 101 What are Wheel Backspacing and Offset?. While shopping for a new set of aftermarket wheels, you'll probably encounter terms like rim width, rim size, bolt pattern and custom wheel offset (or backspacing) UNDERSTANDING WHEEL OFFSET AND BACKSPACING ECS TUNING 1000 SEVILLE RD
